Orbitrap Eclipse w/ETD and Vanquish Neo System
- 카테고리
- LCMS/MS
- 구매년 - 월
- 2022년 6월
- 카테고리
- LCMS/MS
- 구매년 - 월
- 2022년 6월
특징 및 장점
- **Key specification
- Mass range : m/z 50-6,000
- Max resolving power 500,000 @ m/z 200 resolving power
- Mass accuracy : <1 ppm (Internal mass calibration) over 24 hours
: <3 ppm (External mass calibration) over 24 hours
- Orbitrap mass analyzer MSn up to 40 Hz / Ion trap MSn up to 45 Hz
- Modified Dual Linear Ion Trap MSMS Sensitivity: 100fg reserpine >200:1
- Synchronous Precursor Isolation: Samples up to 20 precursors per MSn scan
제품 세부 규격

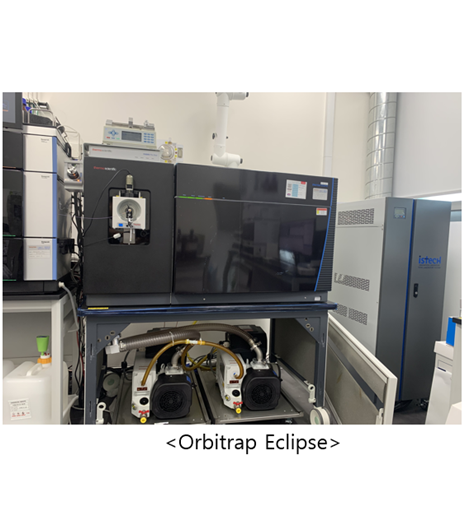

| 1. Orbitrap Eclipse, ETD Ready System | 1) Ion Max NG Ion Source with HESI 2) Advanced Ion Management Technology (AIM+) with the new QR5 segmented quadrupole mass filter 3) C-Trap and Ion-Routing Multipole 4) Ultra-High-Field Orbitrap Mass Analyzer 5) Modified Dual-Pressure Linear Ion Trap (MSn=10) |
|---|---|
| 2. FAIMS Pro Interface Kit | - High-Field Asymmetric Waveform Ion Mobility - Enhanced ease-of-use with tool-free and one-way assembly |
| 3. ETD RF KIT, LUMOS & ECLIPSE | |
| 4. IC INLET KIT, ORBITRAP ECLIPSE for ETD System | |
| 5. EASY-Spray Source Kit (NG) for Nano Source | |

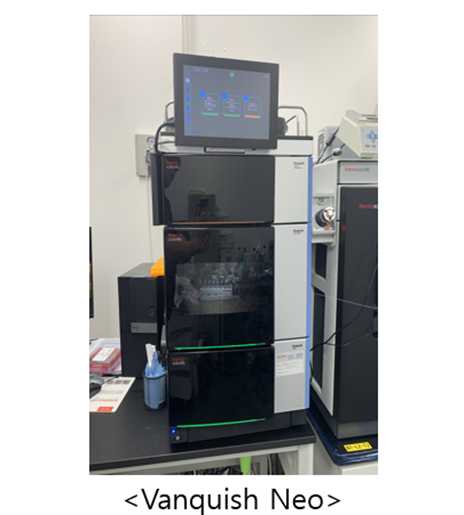

| 6. Vanquish Neo Bundle System for Proteomics | 1) Solvent Rack 2) Binary Pump N; 1 nL/min–100 μL/min @ 1500 bar, 21,750 psi 3) Split Sampler NT; injection volumn 0.01–25 μL / Cooling 4–0 °C 4) Column Compartment N; 5oC ~ 80oC with 2sets of High pressure valves 5) System Base & Display Accessories 6) EASY Spray Column & Trap Column for Vanquish Neo |

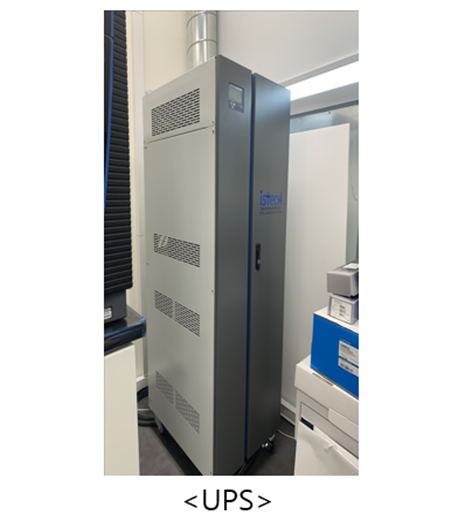

| 7. UPS SINGLE PHASE 15 KVA(30min) |
